Since getting into tube amps I quikcly managed to ramp up my skills. Some weeks ago I decided to build my first amp. I really dig the design language used by Nagra. Being of Polish descent, I really wanted to make a homage to Stefan Kudelski and challenge my skills.
I am coming to the stage of actually wiring the internals. I am looking for some tips I should consider while doing the internals. I am going to do point to point wiring for all of the amp.
Please tell me if you need more information to give accurate feedback. I really hope to learn from the pro's here.

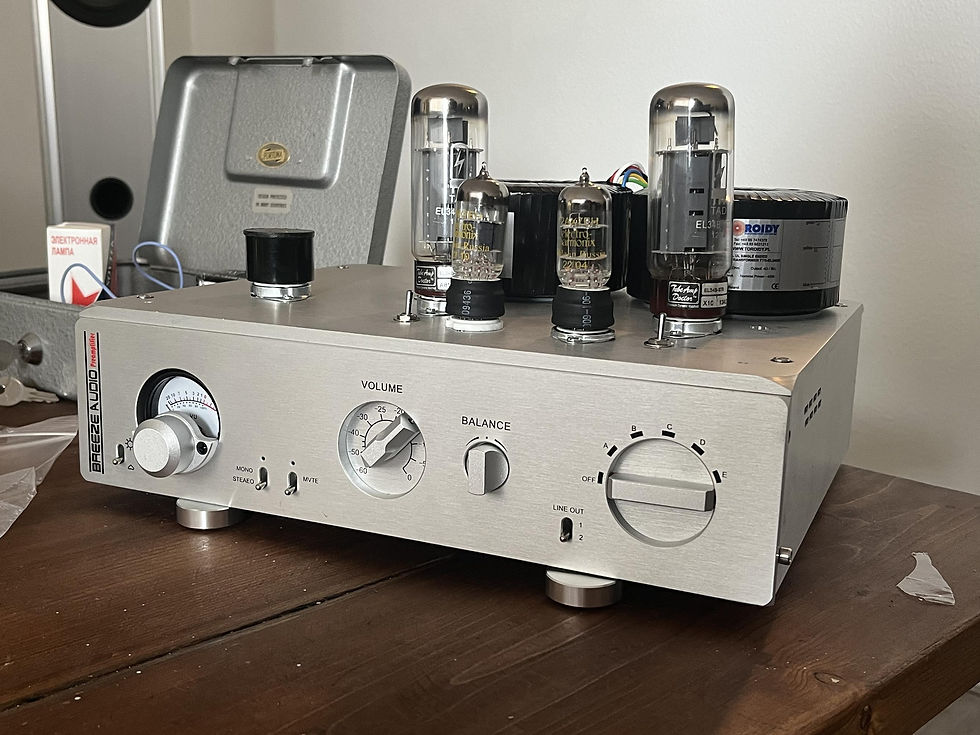

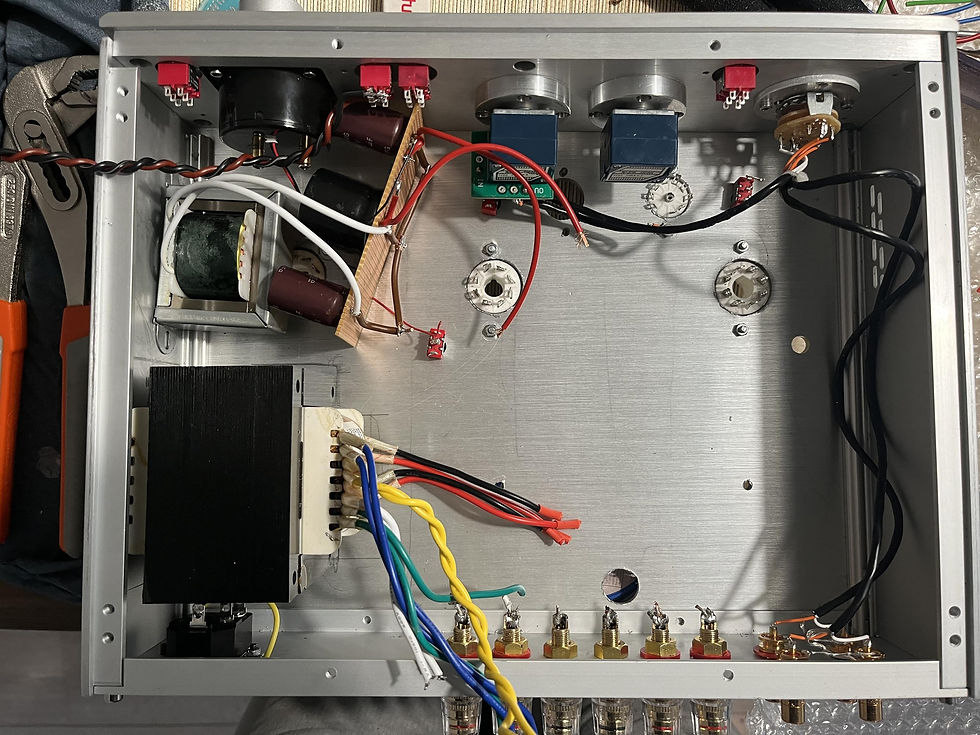

Please note: You will see some parts are loose, this is because I am not finished with the internal design yet. Also a piece is missing on the 12ax7 tube socket because the company I ordered from forgot to send me all the parts. I am waiting for those to arrive. Same goes for a switch.

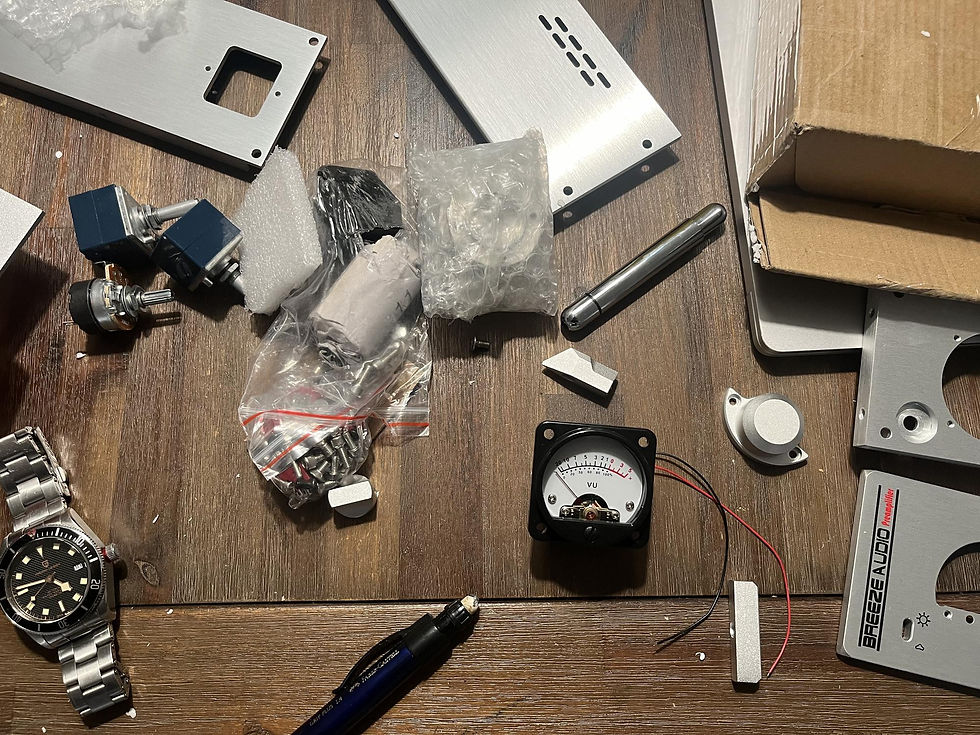

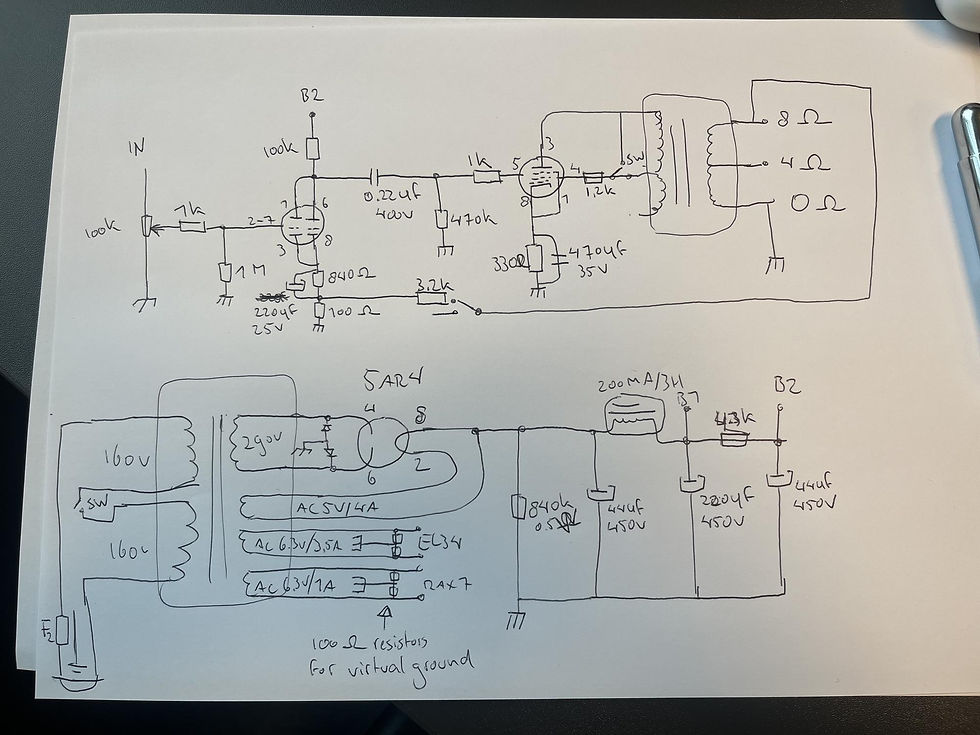

Note on the resistor values on the cathodes: They give me the correct bias. I already did the schematics in another amp witht he exact same parts.
